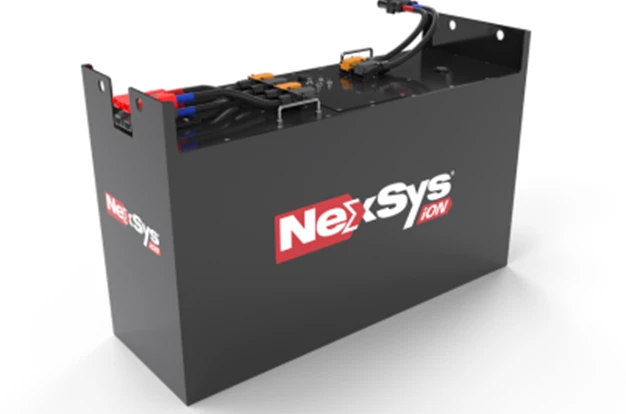

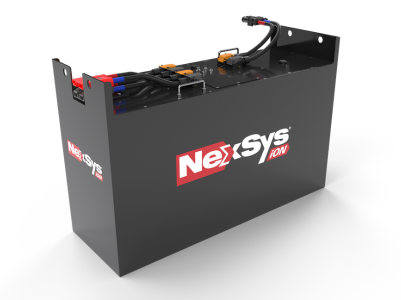

NEXSYS® iON BATTERIES
NexSys® iON is an industrial lithium-ion motive-power line designed for demanding material-handling applications where fast recharge capability, integrated controls and reduced routine battery maintenance are priorities.
APPLICATION OVERVIEW
For fleets evaluating lithium-ion, the key question is not simply whether the truck can accept a lithium battery. The battery capacity, truck communication, connector, compartment, ballast requirements, charger and duty cycle all have to be reviewed together.
Opportunity charging can be especially useful in multi-shift operations because charging can occur during breaks or planned idle periods. The actual charging strategy should be sized around energy consumption and available facility power.
FITMENT INFORMATION TO PROVIDE
Send the equipment make/model, current battery voltage and Ah rating, battery compartment dimensions, connector details, shift profile and delivery ZIP code. For chargers, also provide facility input voltage and phase.
WHY SYSTEM MATCHING MATTERS
Battery, charger and truck compatibility should be verified as a system. Incorrect voltage, charging profile, connector arrangement, battery weight or physical dimensions can prevent a replacement from working correctly even when the battery technology appears similar.
KEY TECHNICAL INFORMATION
- Lithium-ion chemistry
- 24–80V
- 185–1,110 Ah (US range shown on Lift Trucks USA)
- CAN bus communication
- Applications include forklifts, pallet trucks, AGVs and floor-care equipment
COMMON QUESTIONS
Can I use this battery in any forklift?
No. Fitment depends on the truck model, voltage, battery compartment, minimum battery weight, connector and duty cycle.
Do I need a matching charger?
Yes. Charger compatibility with the battery chemistry, voltage and capacity should be confirmed.
What should I send for a quote?
Send the equipment model, current battery nameplate information, dimensions, connector details, duty cycle and ZIP code.
REQUEST CURRENT OPTIONS
Tell us what you are moving, lifting or servicing and we will help narrow the right equipment or power solution.
